Rooftop Package Unit (115-230kW)
Rooftop Package Unit (115-230kW)

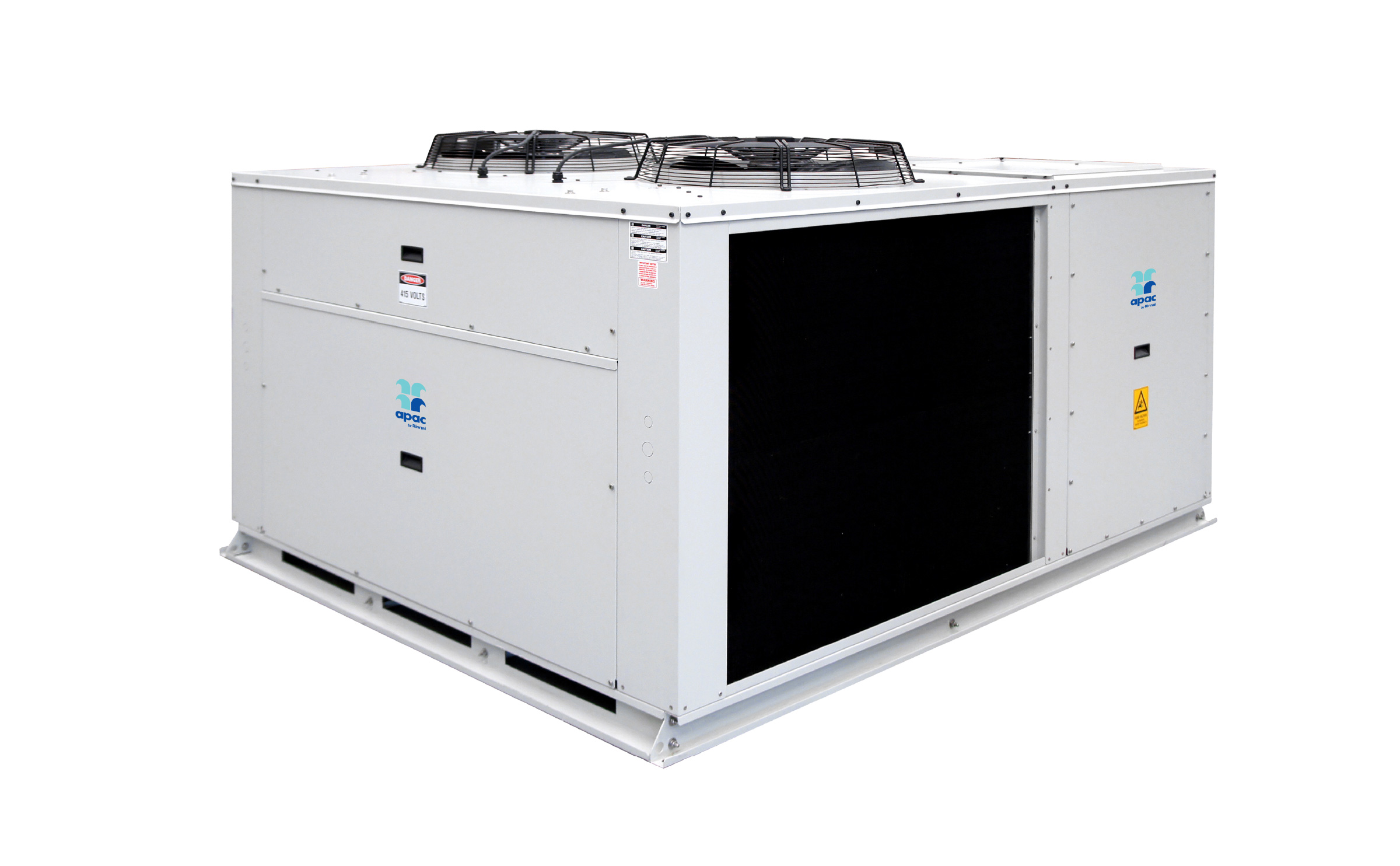

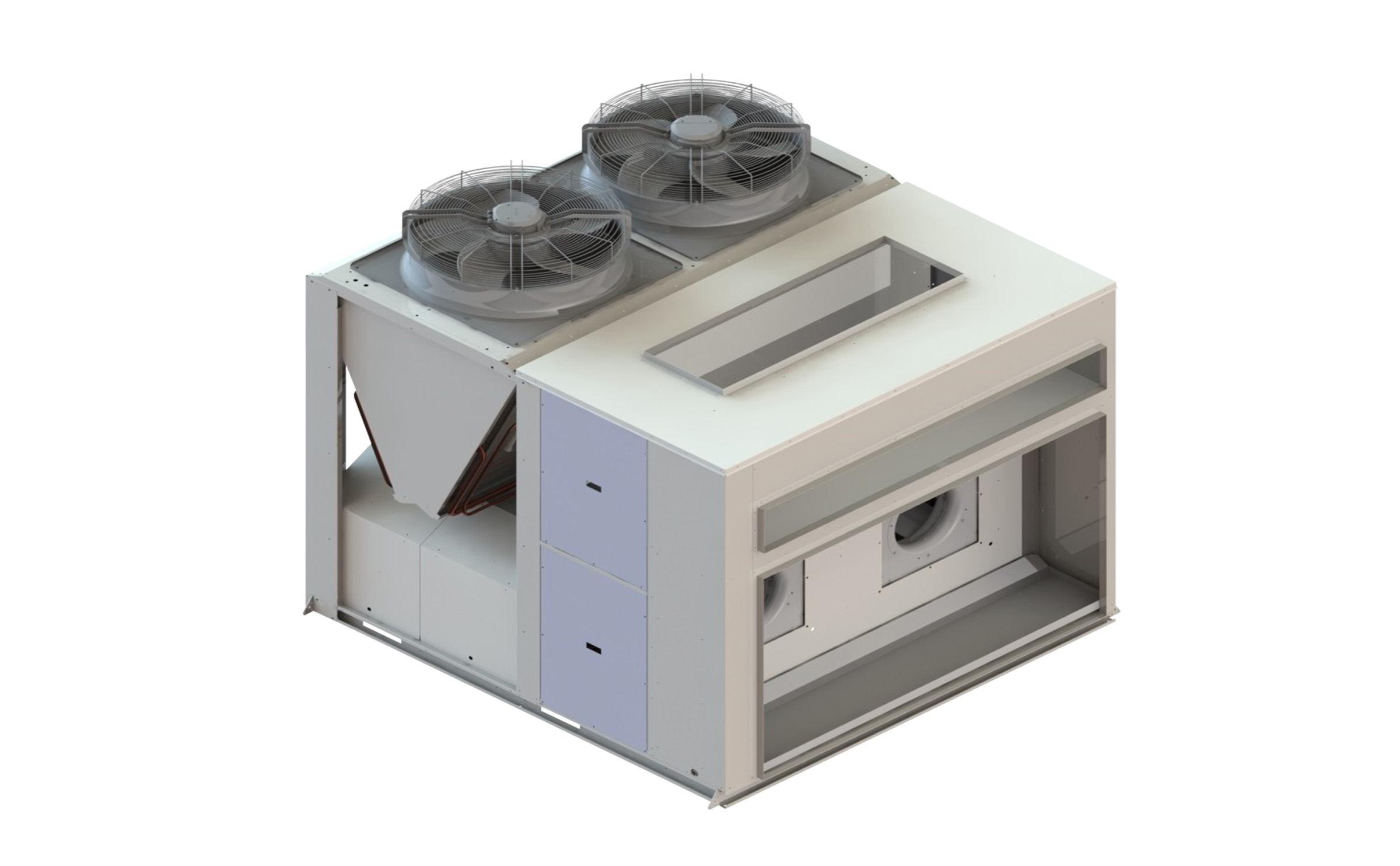

The APAC Rooftop Package Unit (115–230kW) is a high-capacity HVAC solution designed for large commercial applications requiring reliable and efficient climate control. Featuring scroll compressors and EC plug indoor fans with high static capability up to 500Pa, it delivers strong, consistent airflow to meet demanding building requirements. The EC hybrid outdoor axial fan and TXV refrigerant control provide precise temperature management and optimized energy performance across a wide operating range.
Built for durability and long-term operation, the unit includes condenser coil anti-corrosion protection, 25mm PE closed-cell insulation for enhanced thermal efficiency, and a phase-fail protection relay to safeguard system components. Fully BCA compliant, this rooftop package unit combines robust performance, energy efficiency, and reliable operation, making it an ideal choice for large-scale commercial HVAC projects.
Locate Your Nearest Store
Corrosion protected outdoor coils as standard
Engineered to order options available
Fully variable EC plug fans – high static pressure
Low noise emissions
Features
- Scroll type compressors
- EC plug indoor fans with high static capability up to 500pa
- EC hybrid outdoor axial fan
- TXV refrigerant control
- Condenser coil anti-corrosion protection
- 25mm PE closed cell insulation
- Phase fail protection relay
- BCA compliant
Factory options customised to order
- Compressor soft starter
- High static pressure outdoor fans
- Double layered insulation to indoor section
- Capacity modulation control
- Outdoor coil(s) with anti-corrosion post-treatment
- Indoor coil(s) with anti-corrosion post-treatment
- Outdoor coil guards, powder coated
- Discharge and suction isolation valves
- Liquid line isolation valves across filter drier
- Cable markers
- Fire relay
- APAC Supply and Return connections
- High Level Interface (HLI) Modbus connectivity
- Integrated filter frame 50mm (no media)
- Economiser – dampers and actuators (no controls)
Factory options engineered to order
- 316 stainless steel cabinet, unpainted
- 304 stainless steel cabinet, powder coated
- Stainless steel external fixings
- Outdoor coil(s) copper / copper
- Indoor coil(s) copper / copper
- Power supply – no neutral (415/3/50)
- Ductable air off in lieu of standard axial
